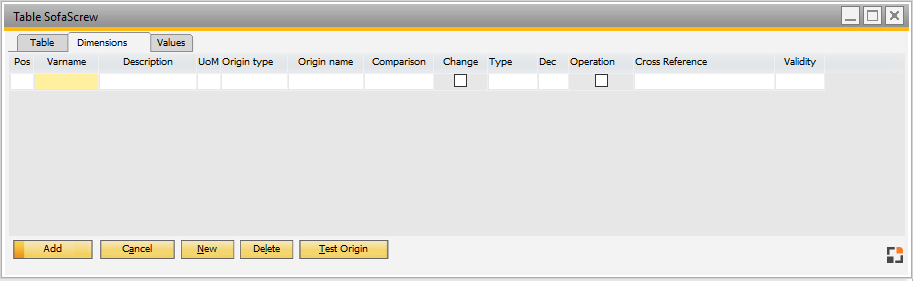

(Definition of used dimensions in table. Max. 6 dimensions)
Field |
Description |
|---|---|
Pos |
Position |
Varname |
Name of the Variable |
Designation |
Designation of the Variable |
UoM |
Unit of measurement |
Origin type |
Origin of variable: - Formula - Table - Variant (from product configuration) - Item field - Order line - Manually (enter manually at run time) - beas-Script |
Origin name |
Name of the object from origin type |
Comparison |
Desired logic for comparison - = (equal) - > (greater) - < (smaller) - => (greater or equal) - <= (smaller or equal) |
Change |
Allow changes at run time |
Type |
Output of formula ("numeric", "string" or "yes|no") |
Dec |
Number of decimals (if numeric) |
Operation |
Mark, to save the variable globally with prefix "agbez_". Then it can be accessed in a description of an operation. |
Cross reference |
Enter a link (Only useful with origin type "manually" or "Change") |
Validity |
Validity of variable: - local (only within the formula and all formulas and tables called by it) - shared (within the assembly and for all following items, but not sub-assemblies) - global (in complete structure from the moment of calculation) |
Test Origin button: See Test window.
The value depends on both the color and length. This could be the required time to upholster the sofas. Values can be stored for all combinations.
Window caft_tabelle_dim_browse.psr
Procedure: 1) Create new table. Table name e.g. "LaborTime" 2) Select tab "Dimension" and insert table values
- Origin type: Manually ( > This value will be asked at "Runtime" and is to be inserted via Keyboard by the User)
- Origin type: Variant (-> This value will be fetched at "Runtime" from the parameters (cover_len, cover_color) of the corresponding product configuration)
3) Select tab "Values" and insert table values
if the length of the cover is "10" and the color is "red", then you'll get for table "LaborTime" at runtime the value "5" as result |
