With the Beas common interface every third application with every language can connect to Beas.

The interface itself is the current database and 2 tables.

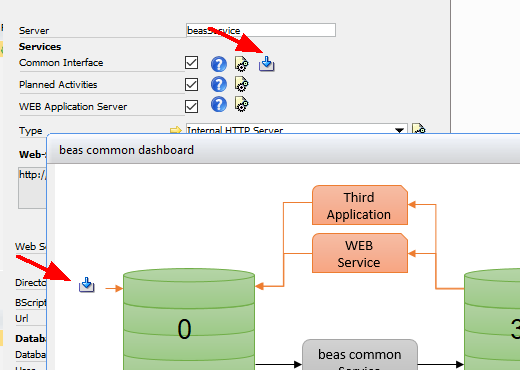

beas_common_Dashb

Window syste_common_dashboard.psr

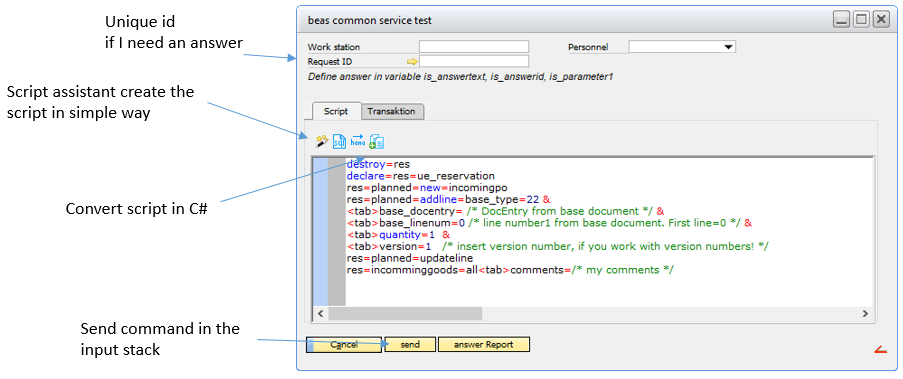

Table BEAS_COMMON_INPUT

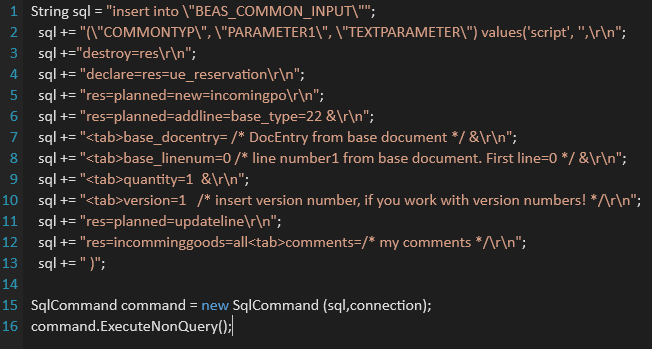

In this table you can write your command to execute

If you define a request id, beas will write an answer in BEAS_COMMON_OUTPUT



Priority: Time critical functions may be granted higher priority. The beas common service always executes stack records with high priority first.



hmtoggle_plus1Details



Bidirectional working: Table BEAS_COMMON_OUTPUT

In this table you can read the answer from beas common service

If you defined a request id, you can read the answer which is marked with same Request id



hmtoggle_plus1Details
hmtoggle_plus1Execute own Scripts
hmtoggle_plus1Print Service
