Application management

Administration > Utility programs > Program group administration

Top  Previous  Next

PATH: Administration > Utilities > Program groups Administration.



List of all installed WEB Services.



An account needs to be set up, for each user as an employee only sees the features that had been released and set up for them in their language.

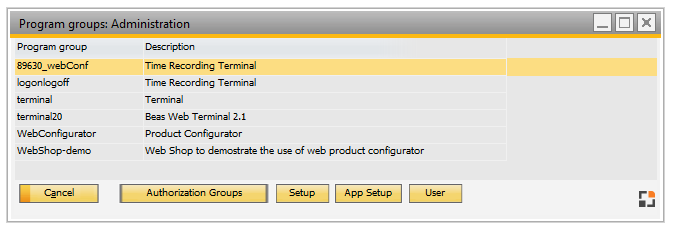

Program_Group_Admin_2022.06_b

Window webprogram_user_browse.psr



The following program groups are delivered by default:

Program group

Meaning

Terminal

All Standard App functions for WEB APP and Desktop solutions for Attendance recording, factory data capture, Material management, Quality control etc.

This program group will be installed and updated automatically at a program update.



Call: IP-address:port/terminal10

Example: http://192.168.178.64:8080/beasweb/terminal10



See Terminal Apps Catalog

Terminal20

New web terminal. This group is to replace the "old" Terminal in the future and is only compatible with internal HTTP Service.

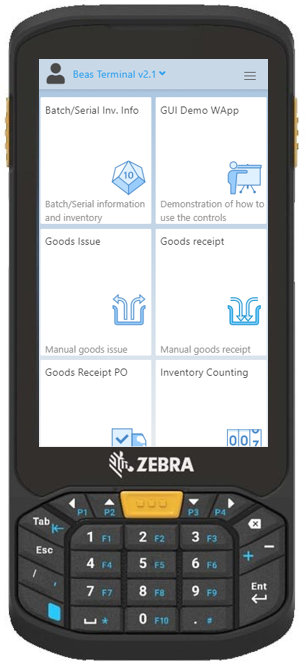

Zebra_main_wdevice

Call: IP-address:port/terminal20

Example: http://192.168.178.64:8080/beasweb/terminal20

Web Product Configurator

Opens a WEB shop Example together with the Product Configurator



Call: IP-address:port/terminal10

Example: http://192.168.178.64:8080/beasweb/WebConfigurator



Here all program groups (Terminal, WEB, Client) are managed. These can contain several applications.

Column

Meaning

Program group

ID of the program group. It can contain different apps.

Description

Description.

Visible

Functional group of apps ( warehouse / production / attendance.

Connection

Currently installed version.

None Update

Check mark to block automatic update.



Functions descriptions

Functions

Meaning

Authorization Groups

Opens the Authorization Groups window.

Setup

Opens the Configuration wizard settings for selected entry: Desktop/Web terminals or the Web Product Configurator.

App Setup

Opens the Apps Administration window.

Development

Opens Apps development.

Import

Import Apps via file explorer.



See

Utility programs

Terminal Apps catalog

Personnel – Master data – Terminal Functions
